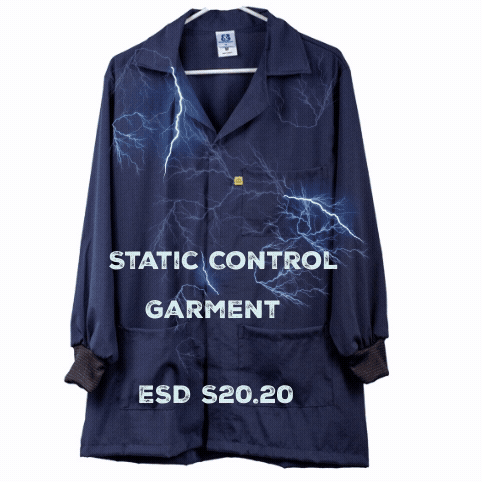

Premium Cotton Poly ESD Smock Covered Snaps

From: $32.53

Size Small
Size Large
Size XL

Sewn with black carbon threading to give the smock static shielding properties required by ANSI / ESD Association S20.20 standards.

Designed with covered snaps and knit cuffs to prevent the wearer from scratching products they are handling.


*10+ Pricing applies when you buy 10+ of a specific variation (i.e, 10 Blue, large 5049JKLRGDB-S)

SizesQty 1-9Qty 10+
Small-XL$32.53 USD$29.82 USD
2XL-3XL$34.07 USD$31.23 USD
4XL$35.22 USD$32.28 USD
5XL$36.51 USD$33.47 USD


SizeBack LengthShoulder WidthSnap Sleeve LengthKnitted Sleeve Length
Small 37 inches18.75 inches23 inches22 inches
Medium 37.25 inches19.25 inches23.25 inches22.25 inches
Large 37.50 inches20.50 inches23.50 inches22.50 inches
XL37.50 inches21.50 inches24 inches23 inches
2XL37.75 inches23.50 inches24.50 inches23.50 inches
3XL38.25 inches25.25 inches24.50 inches23.50 inches
4XL38.50 inches26.75 inches24.75 inches23.75 inches
5XL38.50 inches28 inches24.75 inches23.75 inches

Tolerance: + / – 2 inches

Garment Specs

► Made in Compliance with ANSI/ESD S20.20 2014 and IEC 61340-5-1

DimensionSpecificationTest Method
Composition76% Polyester 22.5% Cotton 1.5% CarbonASTM D-629
Ounces Per Square Yard 4.6ASTM D-3776-85
Surface Resistance106-8 OhmsDIN 54345
Charge Decay0.5 seconds per 1000 voltsNFPA-99
Weave6mm x 5mm grid-
Friction Charges60 voltsJIS L1094-B
Air Permeability0.4 c.c/cm2/secJIS L1096-A-1990
Tear Strength ( Warp )1600gJIS L1096
Tear Strength ( Weft )1200gJIS L1096
Tensile Strength ( Warp )100kgJIS L1096 6.12A
Tensile Strength ( Weft )54.3kgJIS L1096 6.12A

Cleaning / Washing

Machine Wash Warm. Do Not Bleach. Use Only Non-Ionic Detergents and Fabric Softeners. Cool Tumble Dry or Hang. Remove Promptly.

Bleach and surfactants in laundry detergent and fabric softeners can chemically break down the black carbon static shielding fabric woven into ESD smocks and lab coats. Use only non-ionic detergents and fabric softeners.

The surfactants in department store detergents and fabric softeners usually include anionic (negatively charged) chemicals: alkyl sulfates, alkyl ethoxylate sulfates, and soaps in the ingredient list of your detergent. These can strip the conductive carbon threading of its positive ions leaving it predisposed to carrying negative charges.

Chemicals in Laundry Detergent by Compound Interest

Click to Enlarge

You should never use chlorine bleach to wash with these garments. It attacks the carbon bonds (which is useful in removing dyes from white clothes) because bleach will destroy the carbon threading of the garment.

Non-chlorine bleaches are those used in “color-safe” commercial bleaches that are activated by contact with oxygen in the water. These are known as oxidizing bleaches: hydrogen peroxide, sodium percarbonate, and sodium perborate. While not as destructive to the carbon threading as chlorine bleach they are alkalines that can remove carbon with repeated use.

How Do ESD Smocks Work?

5049 Series ESD Lab Coats shield nearby electronics from static discharges (ESD) emanating from static that is on underlying clothes and skin. The ratio of polyester (the color of the fabric) to carbon (the black thread woven in a grid) in the smock means it is static dissipative: resisting charging when the wearer rubs the smock against itself or other objects.
