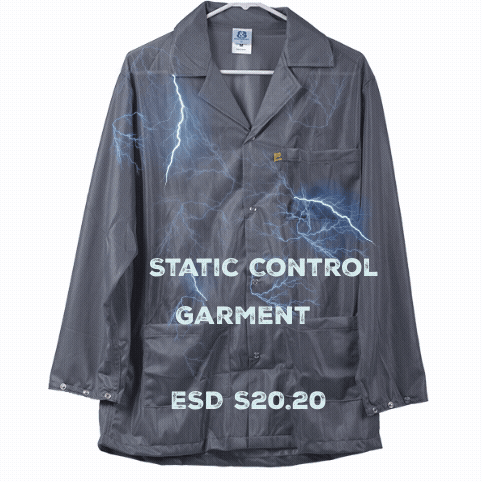

Elimstat Bennett and Bennett 8900 Series ESD Smocks
Elimstat S2020 ESD Smocks shield nearby electronics from static on your upper body to eliminate electrostatic discharge
ESD Smocks are Groundable by wearing wrist straps connected to electrical ground. Mats and Wrist Straps for ESD Grounding sold separately.
Elimstat 8900 Series ESD Fabric
SKU: N/A Category: Tags: , , , , ,

Sewn with black carbon threading to give it static shielding properties required by ANSI / ESD Association S20.20 standards.

Groundable with wrist strap worn exposed. Washable 100 times following label instructions.

Prices

*10+ Pricing applies when you buy 10+ of a specific variation (i.e, 10 blue, large 8900JSLRGBL)

SizesQty 1 -9 Qty 10+
Small - XL$35.58 USD$32.62 USD
2XL - 4XL$41.05 USD$37.63 USD
5XL$48.11 USD$44.10 USD





















Sizes

SizeBack LengthShoulder WidthSnap Sleeve LengthKnit Sleeve Length
Small31 inches18.75 inches23 inches22 inches
Medium31.25 inches19.25 inches23.25 inches22.25 inches
Large31.50 inches20.50 inches23.50 inches22.25 inches
XL31.50 inches21.50 inches24 inches23 inches
2XL31.75 inches23.50 inches24.50 inches23.50 inches
3XL32.25 inches25.25 inches24.50 inches23.50 inches
4XL32.50 inches26.75 inches24.75 inches23.75 inches
5XL32.50 inches28 inches24.75 inches23.75 inches

Tolerance: + / – 2 inches

Garment Specs

► Made in Compliance with ANSI/ESD S20.20 2014 and IEC 61340-5-1

DimensionSpecificationTest Method
Composition97% Polyester 3% CarbonASTM D-629
Ounces Per Square Yard3.54ASTM D-3776-85
Cuff Snaps4mm Snaps (1 Socket, 2 Stud Snaps)_
ESD Surface Resistance106 to 107 OhmsDIN 54345
Static Charge Decay0.5 seconds per 1000 voltsNFPA-99
Weave6mm rhomb ( warp knit )
Friction Charges1150 voltsJIS L1094-B
Tear Strength ( Warp )1600 gJIS L1096 6.15.5D
Tear Strength ( Weft )1200 gJIS L1096 6.15.5D
Tensile Strength ( Warp )100 kgJIS L1096 6.12A
Tensile Strength ( Weft ) 54.3 kgJIS L1096 6.12A

Cleaning / Washing

Machine Wash Cold. Do Not Bleach. Use Only Non-Ionic Detergents and Fabric Softeners. Cool Tumble Dry or Hang. Remove Promptly.

Bleach and surfactants in laundry detergent and fabric softeners can chemically break down the black carbon static shielding fabric woven into ESD smocks and lab coats. Use only liquid non-ionic detergents and fabric softeners that would be appropriate for washing sensitive fabrics like wool.

The surfactants in ionic detergents and fabric softeners usually include anionic (negatively charged) chemicals: alkyl sulfates, alkyl ethoxylate sulfates, and soaps in the ingredient list of your detergent. These can strip the conductive carbon threading of its positive ions leaving it predisposed to carrying negative charges.

Chemicals in Laundry Detergent by Compound Interest

Click to Enlarge

You should never use chlorine bleach to wash with these garments. It attacks the carbon bonds (which is useful in removing dyes from white clothes) because bleach will destroy the carbon threading of the garment.

Non-chlorine bleaches are those used in “color-safe” commercial bleaches that are activated by contact with oxygen in the water. These are known as oxidizing bleaches: hydrogen peroxide, sodium percarbonate, and sodium perborate. While not as destructive to the carbon threading as chlorine bleach they are alkalines that can remove carbon with repeated use.

Embroidery

Order Embroidered Garments

Ordering Options
► Minimum Order: 10 pieces.
► Option 1: Call 937-993-0300 to order now.
► Option 2: Fill out the form below. Customer Care will call to confirm your order.
► Charges. $10 per name or logo (10-49), $8.33 per name or logo (50+),
$40 one-time logo digitization charge.
► Logo File Upload. Logos are up to 4" in diameter. We accept .eps, .ai, .cdr, .pdf, .png, and .jpg files.

Click to enlarge

Elimstat ESD Smock Embroidery Colors

  • Part NumberDescriptionSizeQuantityName on Smock
  • Part NumberDescriptionSizeQuantity
  • Accepted file types: ai, eps, pdf, jpeg, jpg, cdr, png, Max. file size: 8 MB.
