• 1 ESD table mat (2 x 4 feet) with snaps installed for common point ground (600mm x 1200mm)
• 1 common point ground (15-foot cable) for grounding mat and wrist strap into an electrical outlet (4.5 m)
• 1 ESD wrist strap (6-foot coil cord + alligator clip) (2m)
* All cables + cords have 1 megohm resistor built-in
► Meets ANSI / ESD STM 4.1 Standard using FTMS 101C Method 4046.
► Lead-Free. Recyclable. Meets European Union (EU) Restriction of Hazardous Substances Directive (RoHS) regulating the reuse of products used in electrical and electronic equipment.
Properties
Units
Typical alues
Test Method
Material
-
Nitrile Butadiene Rubber / Carbon
-
Thickness
Inches
.08
ASTM D-2103
Tensile Strength • Top Layer
kg / sq. cm
> 120
ASTM D-412
Tensile Strength • Bottom Layer
kg / sq. cm
> 160
ASTM D-412
Tear Strength • Top Layer
kg / sq. cm
> 90
ASTM D-412
Tear Strength • Bottom Layer
kg / sq. cm
> 100
ASTM D-412
Elongation • Top Layer
%
350
ASTM D-412
Elongation • Bottom Layer
%
250
ASTM D-412
Hardness • Top Layer
Shore A
50
ASTM D-2240
Hardness • Bottom Layer
Shore A
60
ASTM D-2240
Gravity • Top Layer
-
1.3
ASTM D-792
Gravity • Bottom Layer
-
1.4
ASTM D-792
ESD Surface Resistance • Top Layer
ohms / square
< 109
ASTM D-257
ESD Surface Resistance • Bottom Layer
ohms / square
< 105
ASTM D-257
Volume Resistivity • Top Layer
ohms / square
< 108
ASTM D-257
Volume Resistivity • Bottom Layer
ohms / square
< 104
ASTM D-257
Static Decay
seconds
< 0.01
EIA-541
Temperature Tolerance
Fahrenheit / Celsius
187F / 86C
-
Connect Common Point Ground to Mat

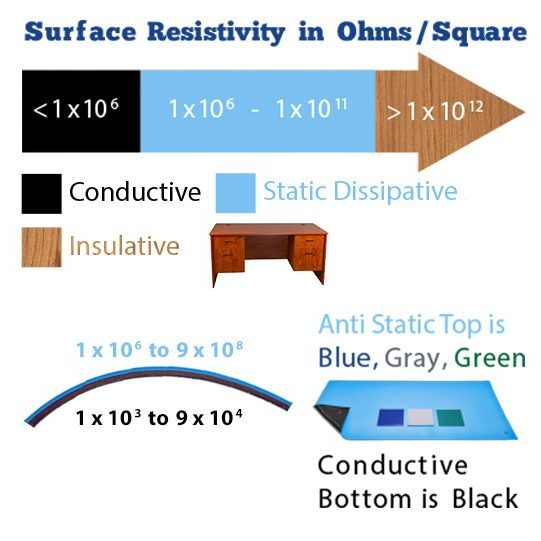

The top anti static side of the mat collects static off of equipment and tools laid on top of it at a static dissipative rate, (1 x 106 to 9 x 108 ohms / square).
The bottom of the mat then conducts static to ground at a conductive rate, (1 x 103 to 9 x 104 ohms / square).
It’s recommended you have grounding cables attached for every 5 feet of mat. They should not be “daisy-chained” together. Instead, directly connect the grounding cables to the electrical outlet.
Electrical outlets typically are the best path to ground the mat in any building because they follow the piping to the Earth’s electrical field underneath the building.
When connected to the electrical outlet, the mat is in electrical balance with the positive and negative charges of the building you are using it in.
Elimstat Standard Workstation Mat Kits Part List
(1) a 2′ x 4′ foot 5300 Series .08″ thick rubber anti static mat with two snaps installed on corners of the long side to connect grounding to;
(1) a 4715 series common point ground (that sits on top of the mat) with a 15 foot anti static ground cable ending in a #10 Ring Terminal to screw directly into an electrical outlet.
(1) a 240 Series wrist strap for capturing static on the skin’s surface that comes with a 6 foot coil cord that terminates in a banana plug (with optional alligator clip) for plugging into 4715 series common point ground.
ANSI / ESD S4.1 Test Data
The border line between conductive and static dissipative is 1 million ohms per square. This is also referred to as 1 meg ohm or 1 x 106 ohms / square.
To satisfy the ANSI / ESD S4.1 Worksurfaces – Resistance Measurements test standard the top static dissipative part of the mat was measured using resistance-to-groundable point and resistance point-to-point tests.
ANSI / ESD S4.1 guidelines at section 8.0 recommend resistance-to-groundable point (RTG) tests should find the top surface of grounded mats measure between 1 x 106 and 1 x 109 ohms / square.
Resistance point-to-point (also known as top-to-top or RTT) tests should measure the ESD resistance of the top surface of the mats at greater than or equal to 1 x 106 ohms / square.
As viewable in our diagrams, all 5300 Series mat samples were recorded within the acceptable range between 1 x 106 and 1 x 109 ohms / square, regardless of humidity, to meet the current S4.1 standard.
In our low relative humidity test, the sample with the least resistance measured 1.2 x 107 ohms / square.
The mat sample with the highest resistance measured 3.9 x 107 ohms / square.
In our moderate relative humidity test, the sample with the least resistance measured 1.0 x 107 ohms / square.
The mat sample with the highest resistance measured 9.8 x 107 ohms / square.
